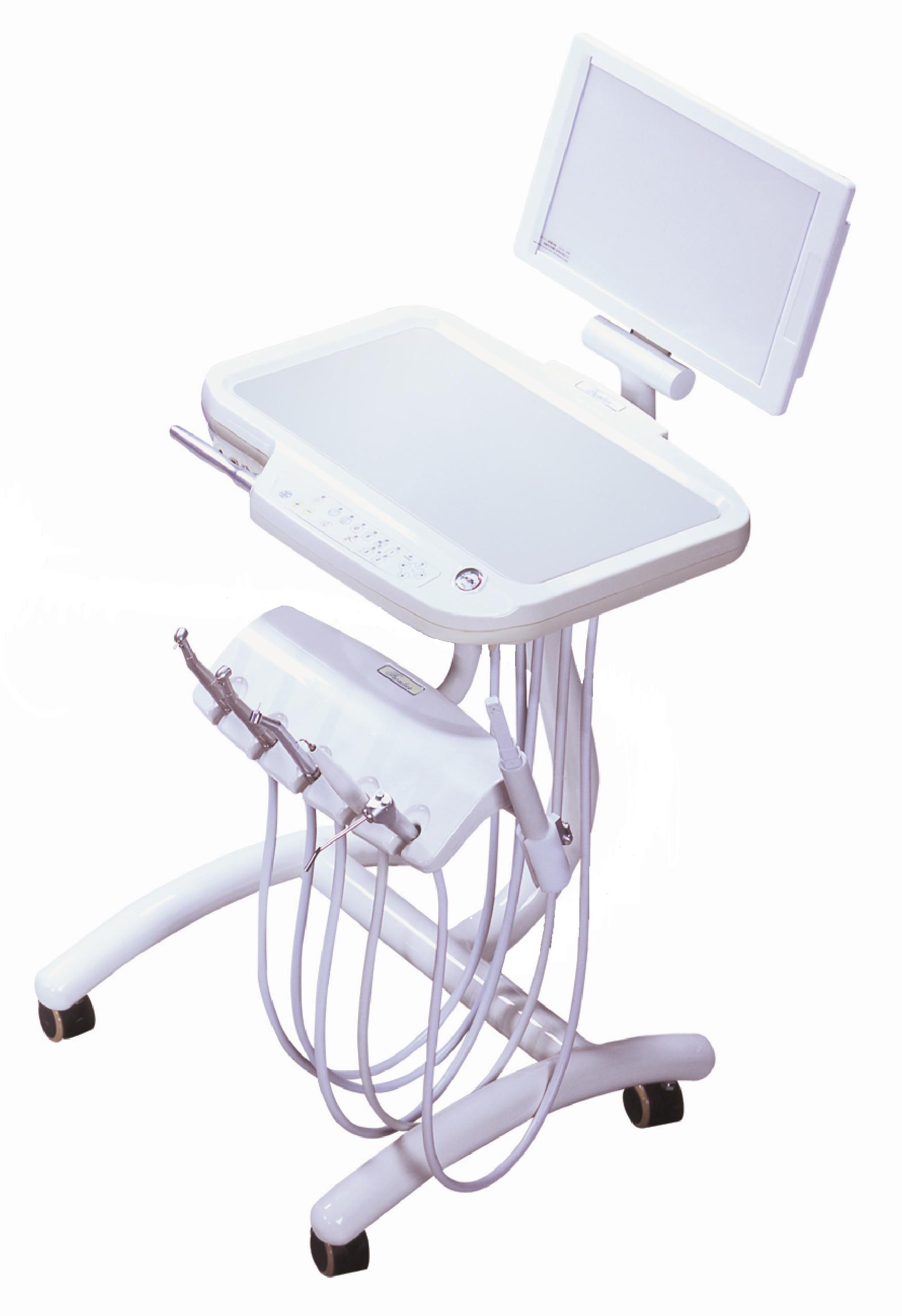

CATALYST Pro Line Chair & Integrated Cart Delivery

CATALYST
Pro Line TITANIUM
Features

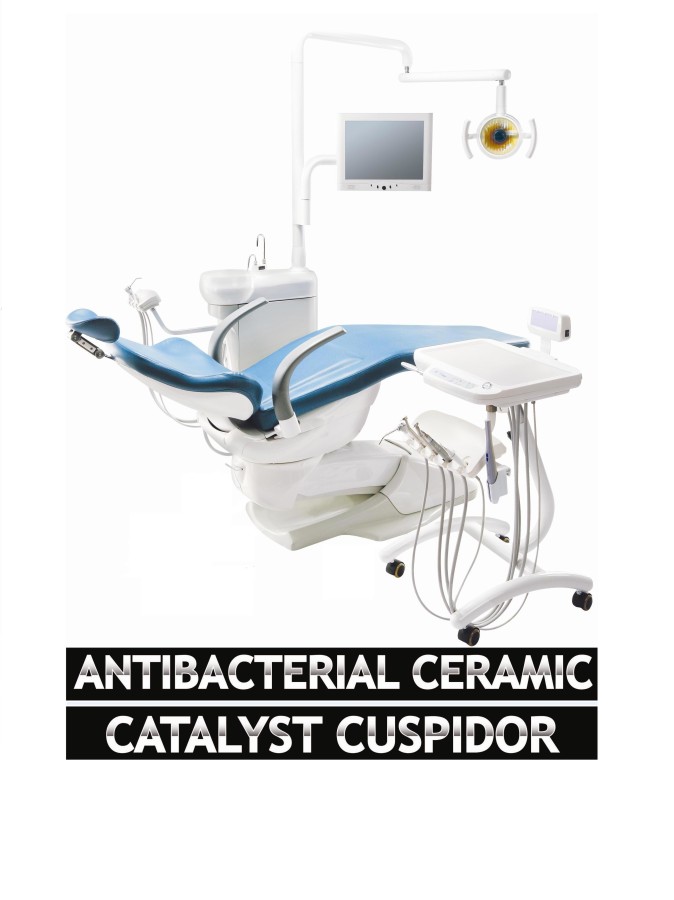

1. Exclusive “Catalyst Cuspidor” encompasses the latest TiO2 antibacterial nanotechnology.
Activated hydroxyls decompose organic materials, helping to keep the ceramic cuspidor surface free from germs & bacteria.
2. Smooth, Reliable, Hydraulic Operation, Adjustable Speed,
Full Aluminium Base with a Durable Baked Enamel Finish
3. Ergonomic Slim Lined Back Rest allows the operator to get in close to the patient providing a better working posture reducing operational fatigue.
4. Ergonomic Double Articulating Head Rest, with a Quick Position Trigger Lock,…….This functional feature provides a means to position the patients head in a more ergonomic way to optimize treatment results, increasing patient comfort and minimising operator fatigue.
5. Ergonomic 3-Axis Overhead Operating Light with Hands Free Motion Sensor Activation. Minimising operational fatigue.
With optional chair motion integration, this ergonomic feature turns the operating light off whilst the chair is in motion avoiding patient eye discomfort.
6. 3 Programmable working positions from the Dr’s console touch pad buttons 1, 2, 3,
O button (exit position) and L.P. button (rinse position & last working position)  As well as full manual chair controls.
7. Chair foot control with 2 programmable working position buttons, O button (exit position) and an L.P. button (rinse position & return to last working position)
And a full manual chair control via a foot disk toggle
8. + Optional arm rest mounted touch pad (same functionality as the Dr’s console)
9. Automatic cup filler with infrared sensor activation.
10. Disabled and elderly access is made easier with a 60 degree pivoting seat which rotates to the left and to the right.
11. Automatic crush zone safety protection, to protect the foot control and other possessions from accidental damage if left underneath the chair.
Chair will stop then automatically raise itself slightly before any damage can occur.
12. Safety lockout function prohibits any chair movement when a handpiece is in operation.
13. Dr’s Operating Tray has a metal chassis re-enforcement and is finished with an anti-slip silicon working mat.   Easy access independent water flow adjustments for each of the four automatic handpiece lines.



14. Equipped with 2 x DCI Triplex Syringes
15. Equipped with Fibre Optic Handpiece Illumination
16. Equipped with an X-Ray viewer
17. Optional Bottled Water System
18. Optional Glass Screen LCD multi-media dental image monitor
19. Optional Intraoral Camera (with Sony CCD High Resolution camera) Wi-Fi version Integrates with computers and ANDROID devices
20. Optional Choice of either Satelec or EMS Integrated Ultrasonic Scaler System
